The Raptor Limited has all the quality features of a Raptor 52″ model plus a bolstered high-back seat with armrests, low profile 10.5″ wide rear tires, 5″ wide front tires, engine guard and hour meter.

Highlights

  • Welded steel 52″ deck
  • Exclusive SmoothTrak™ steering
  • Hustler’s legendary zero-turn precision
  • Patented automatic parking brake
  • Three-year warranty



Free Delivery within 75 miles.

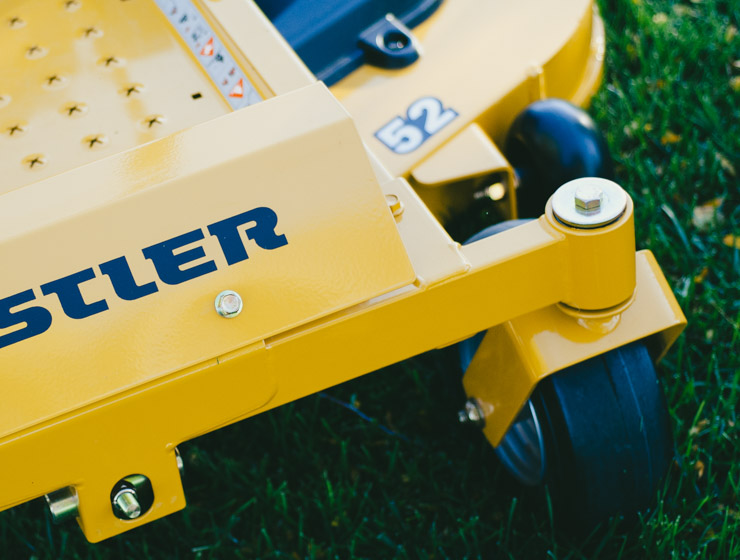

Hustler Raptor Limited mower 52″ mower deck

$3,499.00 Add to cart

  • e4f4f8fd3d766b1431154a25070e50b067ba3005
  • Raptor52_4
  • e4f4f8fd3d766b1431154a25070e50b067ba3005
  • Raptor52_4




Engine

Mower Configuration 52″ Limited Kawasaki FR691
Manufacturer Kawasaki
HP (Per SAE J 1995.) 23
Displacement 725
Cooling Air Cooled
Air Cleaner Single Stage
Engine Warranty 3 Year

Drive System

Mower Configuration 52″ Limited Kawasaki FR691
Type Dual Hydrostatic
Pumps n/a
Wheel Motors n/a
Hydraulic Lines n/a
Hydraulic Cooling n/a
Reservoir Capacity n/a
Transmission Hydro-Gear EZT
Speed 6.5 mph
Parking Brakes Patented Automatic

Decks

Mower Configuration 52″ Limited Kawasaki FR691
Cutting Width 52″
Cutting Heights 1.5″ – 4.5″
Deck Lift Hand Operated
Depth 4.1″
Blades 3
Blade Length 3 – 17.86″ x 2.25″ x .188″
Blade Tip Speed 16,600 fpm
Spindles Aluminum w/ 3/4″ Shafts and Triple Protection Sealed Ball Bearings
Deck Belts n/a
Drive Electric PTO Clutch
Construction 11ga. Fabricated
Spindle Mounts Reinforced 14ga.
Impact/Trim Areas 1/4″ x 3/4″ Steel Bar

Construction

Mower Configuration 52″ Limited Kawasaki FR691
Frame 3.25″ x 1.5″ x .120″ Steel
Deck Carrier Frame n/a
Engine/Transmission Frame n/a
Engine Plate n/a
Front Axle Fabricated w/ Sealed Ball Bearings
Front Caster Wheels Commercial Duty Steel Roller Bearings, Greasable
Front Caster Forks Fabricated 1/4″ Steel
Operator Platform n/a

General

Mower Configuration 52″ Limited Kawasaki FR691
Seat Premium Seat w/ Armrests
Fuel Capacity 3 gal.
Cup Holder Yes
Front Tire 11 x 5
Drive Tire 18 x 10.5 – 10

Productivity

Mower Configuration 52″ Limited Kawasaki FR691
Acres per Hour 2.72

Dimensions

Mower Configuration 52″ Limited Kawasaki FR691
Weight 503 lbs.
Height 45″
Height w/ ROPS Up n/a
Height w/ ROPS Folded n/a
Length 73″
Width n/a
Width w/ Chute Up 53.4″
Tire Width 45″

Dimensions w/ Catcher

Mower Configuration 52″ Limited Kawasaki FR691
Catcher Type 2-bag
Powered/Non-powered Non-powered
Catcher Capacity 5.4 bushel
Mower Length w/ Catcher 96.4″
Mower Width w/ Catcher 63.9″

Warranty

The Raptor® Limited has the best warranty in its class in the industry.

Hustler® mowers are built to the highest of standards, but our unmatched warranties provide extra peace of mind. See your local Hustler® dealer for complete details.
